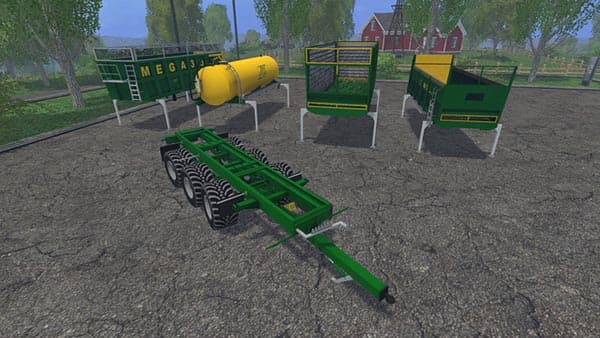

ZDT Mega 33 [SP]

Bilaterally tipping bucket-tipping to the rear and to one side of the customer.The conical tub ensure easy emptying of cohesive materials, smooth walls.Hydraulic lift with hydraulic tailboard Zama.The useful volume of 30.5 m ³.Hopper window in the rear face.Basic dimensions (mm)max. length 9670max. 2550max. height with supers 3790length of the loading area 7850Platform width 2148/2248volume (m³) 30.4 / 34 / 39.2max. height when tilting backwards 8650/8834max. height when tilting to the side 4162/4570Weight (kg)standby 8650/8770useful permitted 24350/18350Total max. 33000/27000remedyClass Type sprung, cushioned hydr.tridemtrack width (mm) 1950/2000Wheelbase (mm) 1525/1525tire size 425 / 65R22,5, 445 / 65x22,5, 560 / 60x22,5, 560 / 60R22,5 550 / 60x22,5, 560 / 60R22,5 AR02connecting dimensions disk Ø280 / Ø335number / size wheel bolts 10xM22x1,5brake drum 406x140 (414S)Brake operation type with twohand-operated mechanical parking brakeGeneral parametersmaximum speed of 40 km / hThe equipment connecting shackle Ø 50 / K80drawbar load (empty / full) 1100/3000climbing ability 9 ° -10 °12V voltage wiringair pressure in the brake system minutes. 650 kPahydraulic system pressure of 18 MPa
